Kepner

Inline Check Valves, Relief Valves, Shuttle Valves, Lock Valves, Pilot Valves and More.

Get Started

Drop us a line and we’ll get back to you!

Unique Design

Provides industry proven solutions

Reliable

Friendly Support

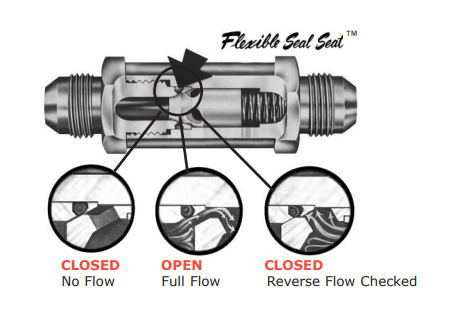

Kepner's Unique Flexible Seal Seat

Closed (No Flow)

Relaxed O-Ring Seal and gentle seal-to-poppet contact guarantees low pressure sealing and eliminates valve chatter.

Open (Full Flow)

Seal flexes to close off all external leakage around end cap. Enclosure protects O-ring seal, prevents seal displacement.

Closed (Reverse Checked)

Seal still holding external leakage now also flexes around poppet. Higher pressures tighten the seal. Bubble-tight shutoff.

Kepner Products

Kepner Inline Check and Relief Check Valves

  • Uses Flexible Seal Seat for zero leagage (bubble-tight) sealing at low and high pressures.
  • O-Ring seal positively secured.
  • Non-pressurized threads.
  • Poppet stop inside valve body prevents spring from bottoming out.

Learn More

Adjustable Inline Relief Valves

  • Flexible Seal Seat for zero leak (bubble-tight) seal
  • Outer O-Ring provides non-pressurized threads
  • Both O-Ring seals positibrly secured
  • Wide relief adjustment range 50 to 2000 PSI (3.45 to 138 bar)

Item Link

Cartridge type Insert Check Valves

  • Uses Flexible Seal Seat for zero leagage (bubble-tight) sealing at low and high pressures.
  • No Threaded connections (avoid potential leakage).
  • O-Ring seal positively secured.
  • Generous flow passgage allow full flow with minimal pressure drop.
  • Compact, easy installation - Accessory Kepner Holding Device Kits available.

Learn More

Inline Single Lock Valves

  • Flexible Seal Seat ensures zero leak (bubble-tight) seal locking
  • Close fitting pilot piston with pressure balancing grooves for minimal pilot loss
  • Basic pilot ratio 3:1
  • High Strength, light weight aluminum body
  • Mounting holes for installation

Learn more

Find Kepner's Catalog Below

Kepner has many products to offer that is not shown above. Download the catalog below to find out more about Kepner's products.

Download Catalog
