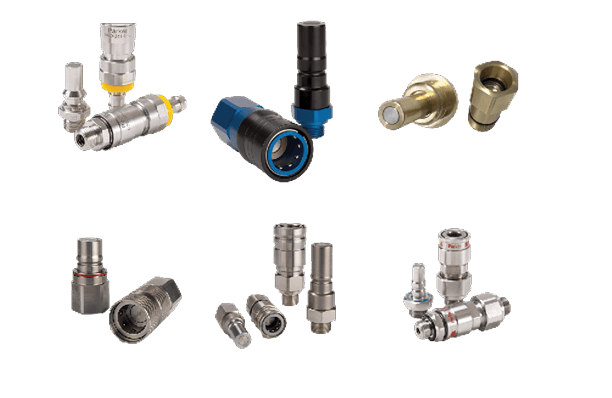

Zemarc carries a wide variety of heat resistive couplings, hoses, and nylon tubing which are available to satisfy any thermal management needs. With dry break couplings, hoses, and nylon tubing, liquid cooling is made easy and worry free and will effectively and efficiently keep your projects cool.
To learn more about thermal management products and services, please download the resource guide below.
| Series | UQD | NSA | NSE | NSI | NSG |
|---|---|---|---|---|---|
| Size | 3.2/6.3 mm | 10/12 mm | 16/19/25 mm | 3/6/9/12 mm | 3 mm |
| Temperature | -40°C to 70°C | -20°C to 200°C | -20°C to 200°C | -50°C to 200°C | -40°C to 70°C |
| Pressure | 11 bar | 20 bar | 15 bar | 60 bar | 11 bar |
| Material | Stainless Steel | Anodized Aluminum | Stainless Steel | Brass/Stainless Steel | Stainless Steel |
PushLok Hose 801 Series
Parker’s 801 general-purpose hose with Push-Lok Plus technology is a low-pressure, multipurpose synthetic rubber hose that is suitable for use with a wide range of media.

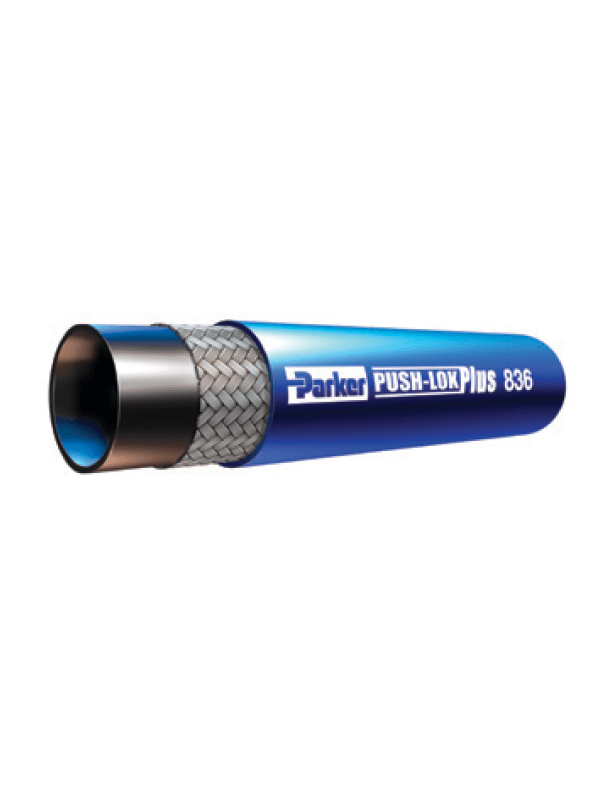

PushLok Hose 836 Series
Parker’s 836 hose is a multipurpose, low pressure hose offering higher temperature and pressure ratings. The 836 series features the widest fluid compatibility, application range and size range in the industry.

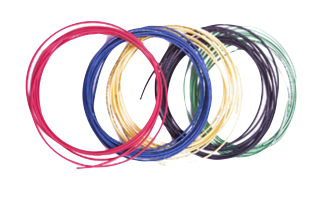

Flexible Nylon Tubing - N Series is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at hight temperatures. It exhibits low-level water absorption and is chemically resistant.
